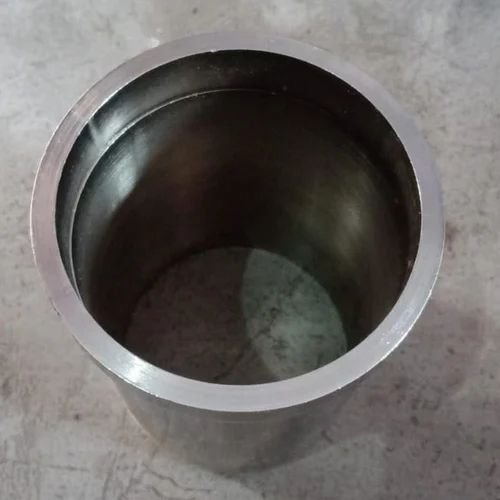

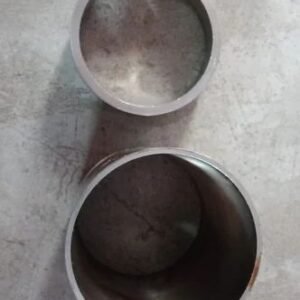

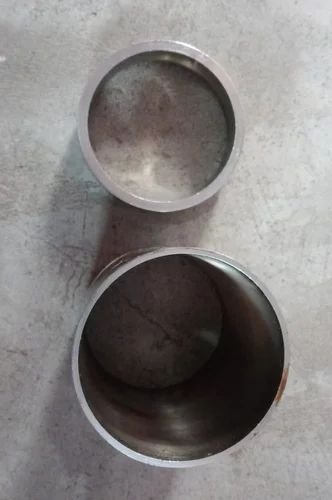

Stainless Steel Soil Core Cutter

A stainless steel soil core cutter is a specialized tool used in geotechnical engineering and soil testing to collect undisturbed soil samples for analysis. This type of core cutter is designed to cut cylindrical specimens of soil without causing significant disturbance to the surrounding soil structure. Here’s a description of the typical features and specifications of a stainless steel soil core cutter:
1. **Material:**   – The core cutter is constructed entirely or predominantly of stainless steel. Stainless steel is chosen for its durability, corrosion resistance, and suitability for working with soil samples.
2. **Cylinder Shape:**   – The core cutter has a cylindrical shape, with a sharp cutting edge at the bottom to penetrate the soil and extract a cylindrical sample.
3. **Cutting Edge:**   – The cutting edge is designed to create a clean and smooth borehole, allowing for the extraction of an intact soil core without disturbing the soil structure.
4. **Dimensions:**   – The dimensions of the core cutter may vary, and common sizes include diameters such as 50mm or 100mm. The length of the cutter determines the length of the soil core that can be collected.
5. **Threaded Design:**   – The core cutter often features a threaded connection at the top, allowing it to be attached to a drilling rod or extension for easy insertion into the soil.
6. **Cutting Shoe:**   – The bottom of the core cutter may have a cutting shoe, which aids in the penetration of the soil and ensures a neat cut.
7. **Liner and Cap:**   – Some core cutters come with a removable liner and cap. The liner is placed inside the core cutter to retain the soil sample during extraction, and the cap seals the top of the cutter.
8. **Sampling Ring:**   – A sampling ring may be included to help remove the soil core from the cutter once it has been extracted from the ground.
9. **Handle or Lifting Device:**   – Some core cutters are equipped with a handle or lifting device to aid in extraction and handling of the soil core.
10. **Markings:**    – The core cutter may have markings or engravings to indicate its size and specifications.
11. **Compliance with Standards:**    – The design and dimensions of the soil core cutter comply with relevant standards, ensuring consistency and accuracy in soil sampling for geotechnical testing.
Using a stainless steel soil core cutter is essential in obtaining representative soil samples for geotechnical investigations, environmental studies, and construction projects, where understanding the soil’s physical and mechanical properties is crucial. Proper handling and cleaning of the core cutter are important to prevent contamination between samples.
