Concrete Testing Cube Mould

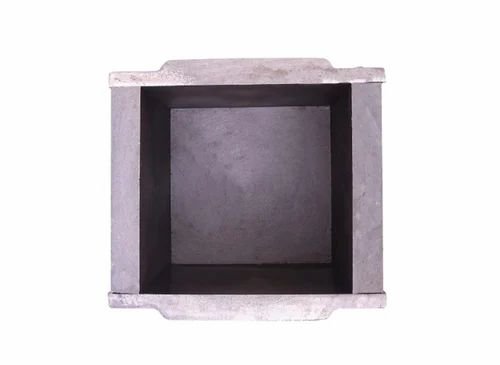

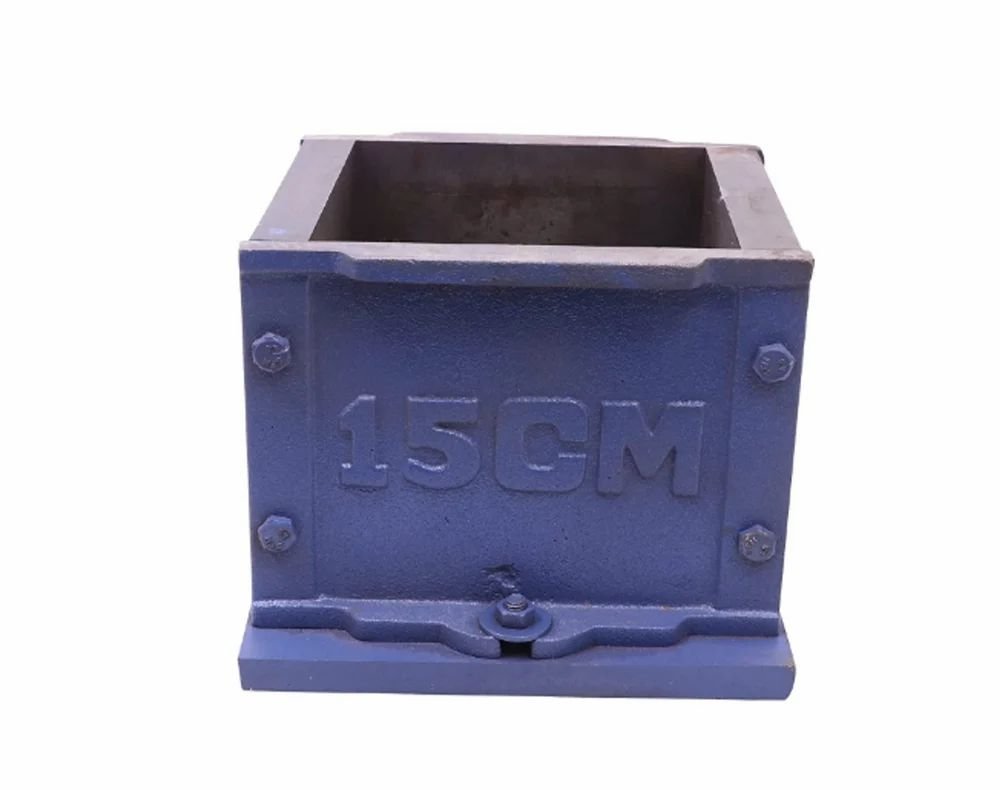

A cast iron concrete testing cube mould is a specialized apparatus used in the construction and civil engineering industry for the preparation and testing of concrete specimens. These moulds are designed to shape concrete samples into cubes, which are then subjected to various tests to assess the compressive strength and other mechanical properties of the concrete.
Here is a description of the typical features and specifications of a cast iron concrete testing cube mould:
1. **Material:**   – The mould is made of durable and rigid cast iron to provide stability and ensure accurate and repeatable test results.
2. **Size:**   – The mould is designed to form concrete cubes of standard sizes, such as 150mm x 150mm x 150mm or 100mm x 100mm x 100mm, in accordance with relevant testing standards.

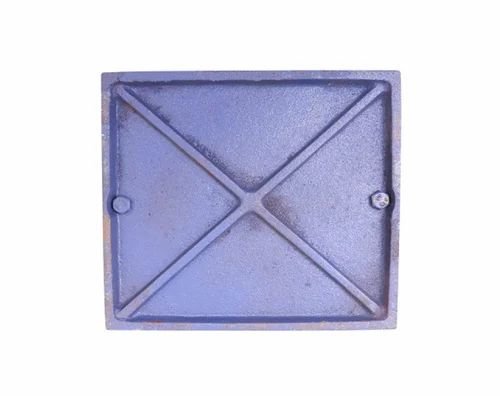

3. **Construction:**   – It consists of two or more detachable parts, typically a base plate and a top plate, which are securely fastened together during the casting process.
4. **Smooth Interior Finish:**   – The interior surfaces of the mould are carefully finished to ensure a smooth texture, preventing any irregularities that could affect the quality and accuracy of the test results.
5. **Sturdy Construction:**   – The mould is robust and designed to withstand the pressure applied during the concrete casting and subsequent testing processes.
6. **Clamping Mechanism:**   – The mould is equipped with a reliable clamping mechanism to securely hold the two halves together during casting and curing.
7. **Lifting Handles:**   – Some moulds feature handles or lifting points to facilitate easy handling and transport of the moulded concrete specimens.
8. **Open-Top Design:**   – The mould typically has an open-top design, allowing easy filling of the concrete mix and ensuring uniform compaction.
9. **Ventilation Holes:**   – Ventilation holes may be incorporated to allow trapped air to escape during the casting process, promoting the formation of high-quality concrete cubes.
10. **Identification Markings:**    – The mould may have markings or engravings to indicate the size and specifications, ensuring easy identification during testing.
11. **Compliance with Standards:**    – The design and dimensions of the cube mould conform to relevant international or industry standards, such as ASTM or BS standards, to ensure consistency and comparability of test results.
It’s crucial to follow proper procedures and guidelines for casting and testing concrete cubes using these moulds to obtain accurate and reliable results in assessing the strength and quality of the concrete.
